BOSCH AUTO BOX GS8.87.0

SKU: SM030

$98.38
Plus import taxes and duties
Add to cart
BOSCH AUTO BOX GS8.87.0 - System Overview
Manufactured by Bosch, this ECU appears to compliment the Motronic M5.2.1 Engine management system. Not being Flash Programmable, there are two near identical systems sub numbered .0 and .1 with the main difference between the two being different shift points, different Gear lever switch inputs, and current gear indicator outputs. This version was fitted to all Automatic versions of the Discovery series II. It is an adaptive unit, which means that it learns and stores the driving habits of the owner and adapts to suit their driving style as well as overcome variations in engine power, etc which can be reset with this module. This ECU does support some OBDII compliant fault codes as well as a large number of codes outside of the standard which this module accesses.
SM030 - BOSCH AUTO BOX GS8.87.0 - System Help file
Version 1.27

BOSCH AUTO BOX GS8.87.0 - Known Fitments
Vehicle makes, models and variants known or believed to be using this vehicle system, required diagnostic lead and degree of known compatibility.

Vehicle Make Vehicle Model Vehicle Variant Diagnostic Lead
Land Rover Discovery II All Automatics Black OBDII Lead

BOSCH AUTO BOX GS8.87.0 - Physical Details

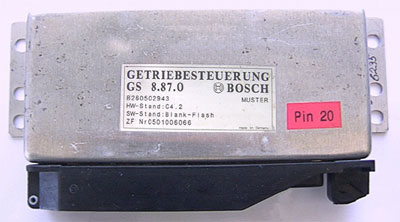

SM030 ECU

BOSCH AUTO BOX GS8.87.0 - Pin Outs
Details of the pin usage for the ECU connector(s).

SM029 pins
1 - 4 Not used
5 Pressure regulator
6 Power ground
7 Not used
8 Position switch
9 Position switch
10 -12 Not used
13 Low/high range input
14 Output speed sensor
15 Output speed sensor screen
16 CAN height
17 - 24 Not used
25 MES line 2
26 Battery supply
27 Not used
28 Electronic ground
29 Not used
30 Solenoid valve 1
31 Diagnostic line
32 Solenoid valve 3
33 Solenoid valve 2
34 - 35 Not used
36 Position switch line 1
37 Position switch line 3
38 - 41 Not used
42 Output speed sensor
43 Not used
44 CAN low
45 Mode switch
46 - 50 Not used
51 MES line 1
52 Not used
53 Supply, solenoids
54 Ignition battery supply
55 Not used

SM030 - BOSCH AUTO BOX GS8.87.0 - Diagnostic Capabilities (Read Fault Codes)
Reads the fault code memory. The ECU can self detect up to 39 different problems with itself, its wiring and its associated sensors, storing the respective code if it detects any malfunction or reading outside of pre defined acceptable limits. Not all stored faults may cause the fault warning lamp to illuminate.

SM030 - BOSCH AUTO BOX GS8.87.0 - Diagnostic Capabilities (Clear Fault Codes)
Clears the fault code memory.

SM030 - BOSCH AUTO BOX GS8.87.0 - Diagnostic Capabilities (Settings)
Values, configuration settings, and other stored information which can be read from the ECU, edited and then rewritten back. Read settings can also be stored as a standard HTML page for reference. These pages can then later be re loaded and re written back to the ECU. Please note that some values may be read only due to the fact that they are supplied from the ECU’s ROM or are internally calculated.

  • Manufacturer: Gives the manufacturer of the gearbox.
  • Software Level: Gives the level of software currently being used on the gearbox ECU.
  • Coding Index: Gives the current standard of coding index used on the gearbox ECU.
  • Vin: Gives the Vehicles VIN number.
  • CAN Software Level: Gives the current level of CAN software being used.
  • Land Rover Part Number: Gives the Land Rover assigned part number.
  • Manufacturers Part Number: Gives the manufacturer assigned part number.
  • Software Version: Gives the software version currently being used.

SM030 - BOSCH AUTO BOX GS8.87.0 - Diagnostic Capabilities (Inputs)
Realtime live display of the information the electronic control unit of the selected vehicle system is currently deriving from its input sensors.

PRESSURES
  • Upshift 1-2 speed range 1: This reading shows the adaptive pressure value that the ECU has learned for upshifts 1 and 2 in speed range 1.
  • Upshift 1-2 speed range 2: This reading shows the adaptive pressure value that the ECM has learned for upshifts 1 and 2 in speed range 2.
  • Upshift 1-2 speed range 3: This reading shows the adaptive pressure value that the ECM has learned for upshifts 1 and 2 in speed range 3.
  • Upshift 2-3 speed range 1: This reading shows the adaptive pressure value that the ECU has learned for upshifts 2 and 3 in speed range 1.
  • Upshift 2-3 speed range 2: This reading shows the adaptive pressure value that the ECU has learned for upshifts 2 and 3 in speed range 2.
  • Upshift 2-3 speed range 3: This reading shows the adaptive pressure value that the ECU has learned for upshifts 2 and 3 in speed range 3.
  • Upshift 3-4 speed range 1: This reading shows the adaptive pressure value that the ECU has learned for upshifts 3 and 4 in speed range 1.
  • Upshift 3-4 speed range 2: This reading shows the adaptive pressure value that the ECU has learned for upshifts 3 and 4 in speed range 2.
  • Upshift 3-4 speed range 3: This reading shows the adaptive pressure value that the ECU has learned for upshifts 3 and 4 in speed range 3.
  • 1-2 speed range 1 correction: This reading shows the adaptive pressure value that the ECU has learned for upshifts 1 and 2 in speed range 1.
  • 1-2 speed range 2 correction: This reading shows the adaptive pressure value that the ECU has learned for upshifts 1 and 2 in speed range 1.
  • 1-2 speed range 3 correction: This reading shows the adaptive pressure value that the ECU has learned for upshifts 1 and 2 in speed range 1.
  • 2-3 speed range 1 correction: This reading shows the adaptive pressure value that the ECU has learned for upshifts 2 and 3 in speed range 2.
  • 2-3 speed range 2 correction: This reading shows the adaptive pressure value that the ECU has learned for upshifts 2 and 3 in speed range 2.
  • 2-3 speed range 3 correction: This reading shows the adaptive pressure value that the ECU has learned for upshifts 2 and 3 in speed range 2.
  • 3-4 speed range 1 correction: This reading shows the adaptive pressure value that the ECU has learned for upshifts 3 and 4 in speed range 3.
  • 3-4 speed range 2 correction: This reading shows the adaptive pressure value that the ECU has learned for upshifts 3 and 4 in speed range 3.
  • 3-4 speed range 3 correction: This reading shows the adaptive pressure value that the ECU has learned for upshifts 3 and 4 in speed range 3.
GENERAL
  • Throttle position %: This shows the current percentage opening of the throttle position sensor as transmitted to the gearbox ECU from the engine management ECU using the CAN link. This percentage varies with the position of the throttle pedal between zero with the throttle closed to about 80% at fully open.
  • Engine torque %: This is the current torque output of the engine relative to the maximum torque available. The value is transmitted to the gearbox ECU from the engine management ECU using the CAN link.
  • Torque requested %: This reading shows the amount of torque (as a percentage of nominal torque) being requested from the engine management ECU. Torque will be reduced during gear shifts. This value is transmitted to the gearbox ECU from the engine management ECU using the CAN link.
  • Reduced torque %: This display shows the current engine torque output corrected for the amount by which the torque is being reduced. The value is given as a percentage of the maximum torque available from the engine. The value is transmitted to the gearbox ECU from the engine management ECU using the CAN link.
  • Friction torque %: This display shows the current amount of engine torque which is being used to overcome engine frictional losses. The value is given as a percentage of the maximum torque available from the engine. The value is transmitted to the gearbox ECU from the engine management ECU using the CAN link.
  • Torque reference Nm: This shows the reference value for maximum torque in Newton metres. The value is transmitted to the gearbox ECU from the engine management ECU using the CAN link.
  • Gear switch W: This reading shows the gear state that the ECU is reading from selector line W.
  • Gear switch X: This reading shows the gear state that the ECU is reading from selector line X.
  • Gear switch Y: This reading shows the gear state that the ECU is reading from selector line Y.
  • Gear switch Z: This reading shows the gear state that the ECU is reading from selector line Z.
  • Program switch: This reading shows whether the ECU is reading the state of the program selector switch as open or closed.
  • High/Low range switch: This reading shows whether the ECU is reading the state of the high/low range switch as being high range or low range.
  • Kick down: This reading shows whether kick down is currently active or inactive.
  • Shift type: If a gear shift is taking place this reading shows the type of the shift.
  • Engine speed (RPM): This is the engine speed measured by the gearbox ECU.
  • Turbine speed (RPM): This is the turbine speed in revolutions per minute.
  • Output speed (RPM): This is the gearbox output speed in revolutions per minute.
  • Battery volts: This reading shows the vehicle battery voltage measured directly by the gearbox ECU.
  • Solenoid valve 1: This reading shows whether solenoid valve 1 is currently being driven on. The solenoid valves 1 and 2 control the gear selection as following:
    1. First gear: Solenoid 1 OFF, Solenoid 2 ON
    2. Second gear: Solenoid 1 ON, Solenoid 2 ON
    3. Third gear: Solenoid 1 ON, Solenoid 2 OFF
    4. Fourth gear: Solenoid 1 OFF, Solenoid 2 OFF
  • Solenoid valve 2: This reading shows whether solenoid valve 2 is currently being driven on.The solenoid valves 1 and 2 control the gear selection as following:
    1. First gear: Solenoid 1 OFF, Solenoid 2 ON
    2. Second gear: Solenoid 1 ON, Solenoid 2 ON
    3. Third gear: Solenoid 1 ON, Solenoid 2 OFF
    4. Fourth gear: Solenoid 1 OFF, Solenoid 2 OFF
  • Solenoid valve 3: This reading shows the current state of the solenoid valve 3 drive. This valve controls the torque converter lock up.
  • Modulator pressure: This value shows the modulation pressure.
  • Adaptive program 1: This reading shows whether the adaptive shift program A1 is currently active.
  • Adaptive program 2: This reading shows whether the adaptive shift program A2 is currently active.
  • Adaptive program 3: This reading shows whether the adaptive shift program A3 is currently active.
  • Engine temperature °C: This shows the current temperature of the engine.

SM030 - BOSCH AUTO BOX GS8.87.0 - Diagnostic Capabilities (Other)
Choice of functions that can be performed.

  • Reset adaptive values: This causes the GS887X ECU to reset all adaptive values that the ECU has learned from the vehicle. The adaptions should be reset if the gearbox mechanical components or gearbox ECU have been renewed or rectified.
