 BI XENON HEADLIGHTS - System Overview |

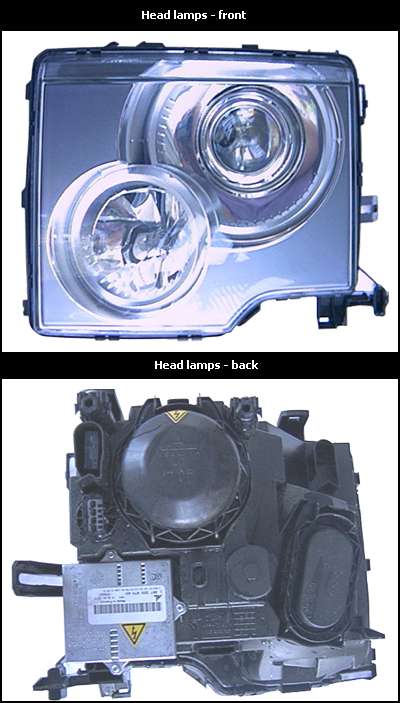

| An option on the L322, the Xenon head lamps have their own ECU built into the back of the head lamp. |
| SM055 - BI XENON HEADLIGHTS - System Help file |
| Version 1.27 |
 BI XENON HEADLIGHTS - Known Fitments | ||||||||
Vehicle makes, models and variants known or believed to be using this vehicle system, required diagnostic lead and degree of known compatibility.
|
 BI XENON HEADLIGHTS - Physical Details |
 |
 SM055 - BI XENON HEADLIGHTS - Diagnostic Capabilities (Read Fault Codes) |
| Reads the fault code memory. The ECU can self detect up to 12 different problems with itself, its wiring and its associated sensors, storing the respective code if it detects any malfunction or reading outside of pre defined acceptable limits. Not all stored faults may cause the fault warning lamp to illuminate. |
| SM055 - BI XENON HEADLIGHTS - Diagnostic Capabilities (Clear Fault Codes) |
| Clears the fault code memory. |
| SM055 - BI XENON HEADLIGHTS - Diagnostic Capabilities (Settings) |
Values, configuration settings, and other stored information which can be read from the ECU, edited and then rewritten back. Read settings can also be stored as a standard HTML page for reference. These pages can then later be re loaded and re written back to the ECU. Please note that some values may be read only due to the fact that they are supplied from the ECU’s ROM or are internally calculated.
|
