SIEMENS AUTO GEARBOX 1
Faultmate MSV-2

SIEMENS AUTO GEARBOX 1

SKU: SM075

$103.56
Plus import taxes and duties
Add to cart
SIEMENS AUTO GEARBOX 1 - System Overview
This system is fitted on the L322 Range Rover but for some unknown reason (perhaps financial) it is only fitted to the diesel variants in place of the much more sophisticated GS8.60
SM075 - SIEMENS AUTO GEARBOX 1 - System Help file
Version 1.27

SIEMENS AUTO GEARBOX 1 - Known Fitments
Vehicle makes, models and variants known or believed to be using this vehicle system, required diagnostic lead and degree of known compatibility.

Vehicle Make Vehicle Model Vehicle Variant Diagnostic Lead
Land Rover Range Rover MK III (L322) Diesel Diesel 2002 - Mid 2006 Black OBDII Lead/LD020/LD021

SIEMENS AUTO GEARBOX 1 - Physical Details

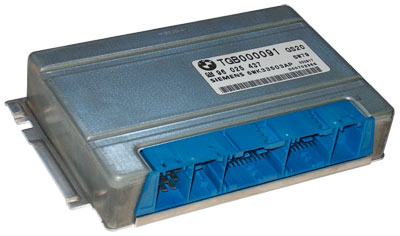

SM075 ECU

SM075 - SIEMENS AUTO GEARBOX 1 - Diagnostic Capabilities (Read Fault Codes)
Reads the fault code memory. The ECU can self detect up to 43 different problems with itself, its wiring and its associated sensors, storing the respective code if it detects any malfunction or reading outside of pre defined acceptable limits. Not all stored faults may cause the fault warning lamp to illuminate.

SM075 - SIEMENS AUTO GEARBOX 1 - Diagnostic Capabilities (Clear Fault Codes)
Clears the fault code memory.

SM075 - SIEMENS AUTO GEARBOX 1 - Diagnostic Capabilities (Settings)
Values, configuration settings, and other stored information which can be read from the ECU, edited and then rewritten back. Read settings can also be stored as a standard HTML page for reference. These pages can then later be re loaded and re written back to the ECU. Please note that some values may be read only due to the fact that they are supplied from the ECU’s ROM or are internally calculated.

  • Part Number: This is the manufacturer's part number for the ECU.
  • Hardware Number: This is the hardware version which denotes the processor and circuit board type.
  • Coding Index: A numerical value which is read from the ECU. It is the coding identification for the programming maps.
  • Diagnostic Index: A numerical value which is read from the ECU. This number indicates the diagnostic capabilities support level.
  • Bus Index: The bus index which is read from the ECU. This indicates the bus communication support level on the vehicle communication buses.
  • Week of Manufacture: This shows the manufacturing week of the ECU.
  • Year of Manufacture: This shows the manufacturing year of the ECU.
  • Software Number: This denotes the coding inside the processor for the hardware.
  • Supplier Number: This is a number which defines the supplier, using a standard look up list of supplier ECU manufacturer numbers.
  • Serial Number: This is the unique serial number for this ECU.

SM075 - SIEMENS AUTO GEARBOX 1 - Diagnostic Capabilities (Inputs)
Realtime live display of the information that the electronic control unit (ECU of the selected vehicle system) is currently deriving from its input sensors.

  • Engine Speed: This reading displays the Electronic Automatic Transmission ECU Engine Speed input in RPM.
  • Turbine Speed: This reading displays the Electronic Automatic Transmission ECU Turbine Speed input in RPM.
  • Output Speed: This reading displays the Electronic Automatic Transmission ECU Output Speed input in RPM.
  • Throttle Valve: This reading displays the Electronic Automatic Transmission ECU Throttle Valve Angle input as a percentage %.
  • Oil Ageing: This reading displays the Electronic Automatic Transmission ECU Oil Ageing percentage %.
  • Engine Temperature: This reading displays the Electronic Automatic Transmission ECU Engine Temperature input in ºC.
  • Oil Temperature: This reading displays the Electronic Automatic Transmission ECU Oil Temperature input in ºC.
  • Battery Volts: This reading displays the Electronic Automatic Transmission ECU Battery Voltage input.
  • Front Left/ Front Right/ Rear Left/ Rear Right Wheel Speed: These readings display the Electronic Automatic Transmission ECU Wheel Speed inputs in km/h and mph.
  • System Pressure: This reading displays the Electronic Automatic Transmission ECU System Pressure - (Pressure Line Solenoid 1) expressed as a current reading in milliamps (mA).
  • Torque converter clutch: This reading displays the Electronic Automatic Transmission ECU Torque Converter Clutch - (Pressure Line Solenoid 4) expressed as a percentage %.
  • Brake Status: This reading displays the Electronic Automatic Transmission ECU Brake input - ON/OFF.
  • Kick Down: This reading displays the Electronic Automatic Transmission ECU Kick Down status - YES/NO.
  • Shift Interlock: This reading displays the Electronic Automatic Transmission ECU Solenoid Shift Lock input - OFF/ON.
  • Shift Solenoid 1: This reading displays the Electronic Automatic Transmission ECU Shift Solenoid 1 input - OFF/ON.
  • Shift Solenoid 2: This reading displays the Electronic Automatic Transmission ECU Shift Solenoid 2 input - OFF/ON.
  • Shift Solenoid 3: This reading displays the Electronic Automatic Transmission ECU Shift Solenoid 3 input - OFF/ON.
  • Gear Selector: This reading displays the Electronic Automatic Transmission ECU Gear Selector input. This denotes what position the gear selector is reported to be in Park, Neutral, Drive or Reverse.
  • Gearbox Operation: This reading displays the Electronic Automatic Transmission ECU Gearbox Operation status. This denotes what mode the gearbox is in - Normal Mode or Limp Home Mode.
  • Cruise: This reading displays the current Electronic Automatic Transmission ECU Cruise status.
  • Gear Ratio: This reading displays the current Electronic Automatic Transmission ECU Gear Ratio selection.
  • Step Gear Shift: This reading displays the Electronic Automatic Transmission ECU Step Gear Shift selection.

SM075 - SIEMENS AUTO GEARBOX 1 - Diagnostic Capabilities (Outputs)
Choice of outputs that can have there state changed.

  • System Pressure/Solenoid 1: This can be turned ON/OFF or returned to ECU control.
  • Torque Converter Clutch/Solenoid 4: This can be turned ON/OFF or returned to ECU control.
  • Shift Solenoid 1, 2 and 3: These can be turned ON/OFF or returned to ECU control.

SM075 - SIEMENS AUTO GEARBOX 1 - Diagnostic Capabilities (Other)
Functions available that can be performed.

  • Reset Adaptation Values: This forces the gearbox ECU to reset all currently learned adaptation values to default values.

Browse Faultmate MSV-2
